Lab Twin Screw Extruder with Professional Configuration for Laboratory

Lab Twin Screw Extruder with Professional Configuration for Laboratory

Lab Twin Screw Extruder with Professional Configuration for Laboratory Product model for your choosing:(Notes: Different
SHARE

Description

Basic Info
Model NO. TSH-20P
After-sales Service Provide
Warranty Gearbox: 3 Years; Extruder: 1 Year
Type Plastic Granules Extruder Machine
Plastic Processed Any Plastic Granules
Product Type Granulating Extruder
Feeding Mode Multiple Feed
Assembly Structure Separate Type Extruder
Screw Twin-Screw
Engagement System Intermeshing
Screw Channel Structure Deep Screw
Exhaust Exhaust
Automation Automatic
Computerized Computerized
Name Plastic Twin Screw Extruder Machine
Motor Siemens, Weg
Inverter ABB, Toshiba, FUJI
Output 250~600(According to Different Material)
Switches France Schneider
Temperature Controller Japan Omron
Certifications CE, ISO, TUV, 30 Patents
Item Plastic Twin Screw Extruder
Processing Material PP, PE, ABS, PS, PA etc. Modification/Recycling
Motor Power Decided by The Output You Need
Material Formula Technical Instruments
Overseas Service Provide
Transport Package Wooden Box, Bubble Film, Wrapping Film
Specification 18.5kW
Trademark TENGDA
Origin Jiangsu, China
Production Capacity 10 Piece/Pieces Per Month
Product Description

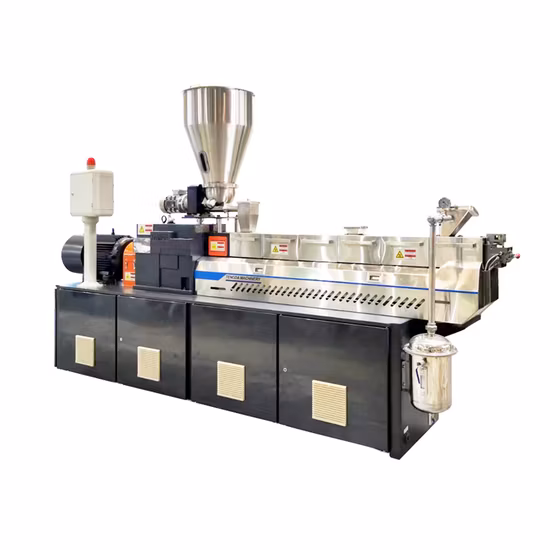

Lab Twin Screw Extruder with Professional Configuration for Laboratory

Product model for your choosing:(Notes: Different raw materials, the output is different, please tell me what's the material you want to produce, I will recommend you the correct model.)
TypeTSH-20TSH-35TSH40TSH52TSH65TSH75TSH95
Screw Diameter (mm)2235.64151.462.47193
Screw Speed (rpm)600600600600600600600
Motor Power (kW)418.5305590132315
L/D32-6032-6832-6832-6832-6832-6832-68
Output (Kg/h)2-1515-9570-120155-255255-400450-750950-1600

Product details:1. Twin screw main extruder: Main motor: Imported "WEG"or "SIEMENS" Variable frequency motor(The frequency converter will automatically change the frequency to reduce the frequency of the motor. The operating current will always run between 80%, 50%, and 30% of the rated power. This will greatly reduce the motor's operating current and achieve the effect of saving electricity).

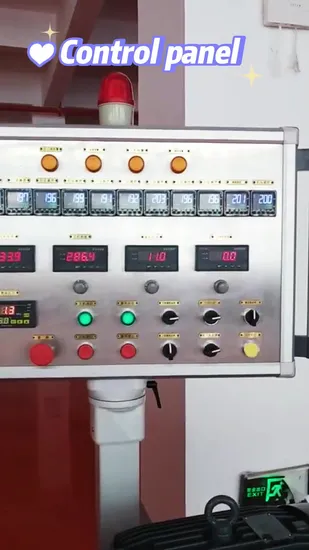

2. Gearbox: Warranty: 3 years; (2)Concentricity deviation of output shaft and input shaft: within 0.2mm; (3)Both output shaft radial bearings are imported "IKO"and "NSK" bearings;3. Electric cabinet box: (1)Inverter: Imported Switzerland"ABB", Japan"TOSHIBA","FUJI"; (2)PLC: Imported "SIEMENS" brand; (3)Main electrical controller:"Schneider" brand; (4)Display of electric current:Japan "OMRON" brand; (5)Temperature instruments: Japan "OMRON" brand;
4. Twin-screw BarrelBimetal wear-resistant and corrosion-resistant material, the base material is 45# steel, after multiple forging, quenching and tempering treatment; the cylinder is inlaid with α-101 wear-resistant and corrosion-resistant alloy bushing, which has better wear resistance and corrosion resistance than general alloy bushings.
5. Screw elements(1)Material is W6Mo5Cr4V2 (high speed tool steel) with the best wear resistance, the whole adopts vacuum quenching treatment, hardness is 60 ~ 62HRC; (2)Designed by the building block principle, and the screw element and the screw shaft are connected by an involute spline, and the screw combination can be adjusted according to the process requirements; The screw elements are all made by CNC machining center, with good identity and strong process repeat-ability,which is benefit for changing;6. Screen changer+Die-head: Quick open die-head, convenient and fast, short flow path of the machine head and less material storage can significantly reduce the deterioration of the material's physical properties, yellowing, black spots and other defects;

Lab Twin Screw Extruder with Professional Configuration for Laboratory

Lab Twin Screw Extruder with Professional Configuration for Laboratory


Machine applications:(Notes: Our machine can be applied in the production of different plastics, such as color masterbatch, filler masterbatch, engineering plastics, reinforced materials, recycling plastics, biodegradable materials and so on.)



Our certificates:Our company was awarded as Jiangsu High-tech Enterprise and National High-tech Enterprise.Won the title of"2021 Nanjing Gazelle Enterprise". This award represents the recognition by the Municipal Development and Reform Commission of Nanjing Tengda's prosperous and healthy development over the years and its achievements.Our company has passed ISO:9001 international quality management system certification,EU CE certification, TUV Rheinland certification, and has more than 30 patents.
